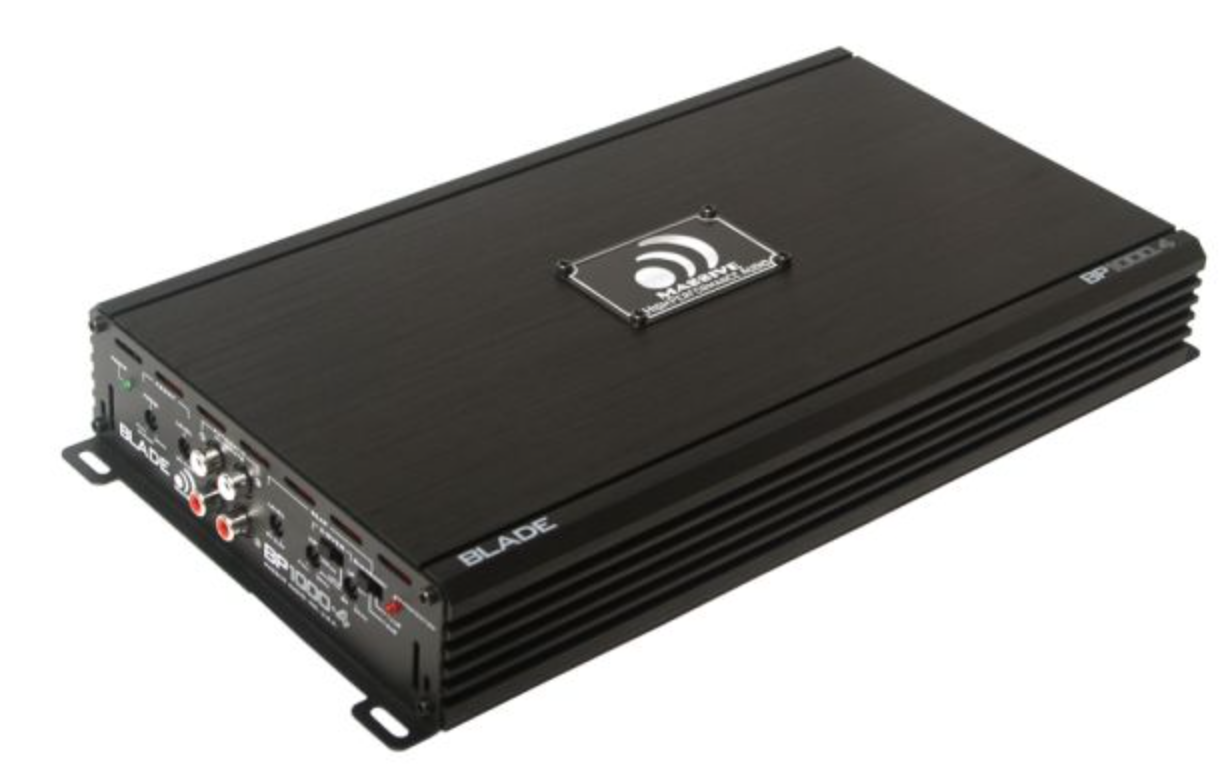

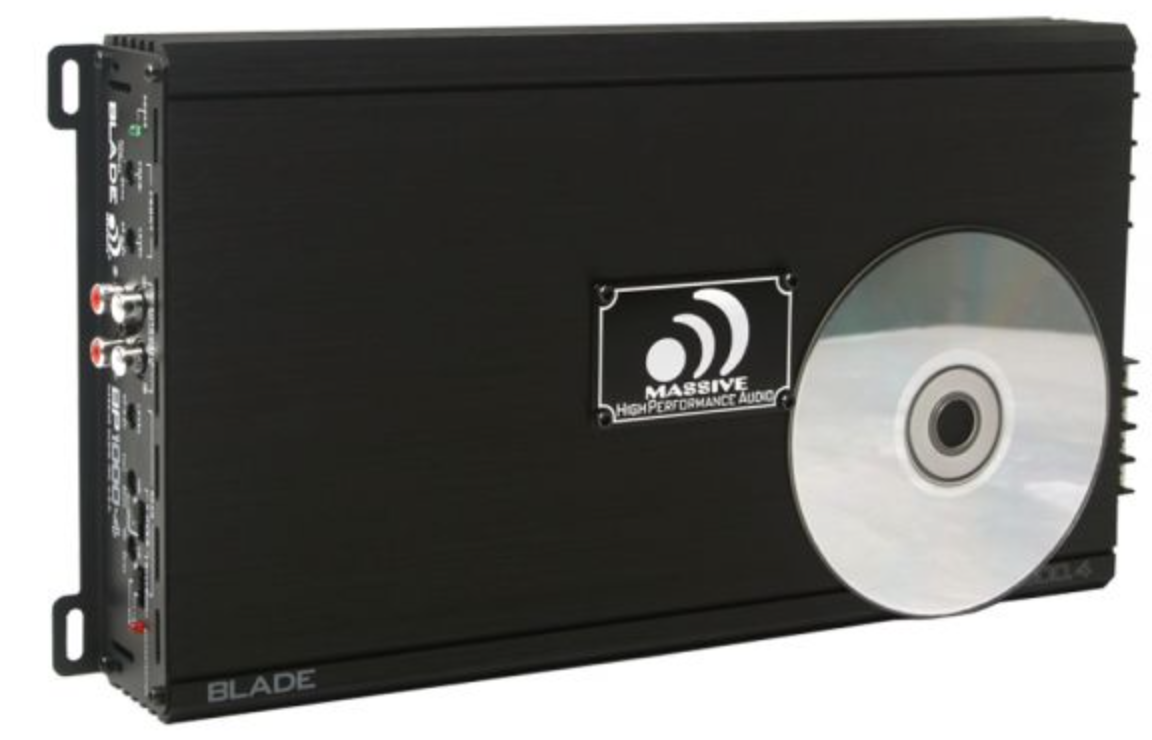

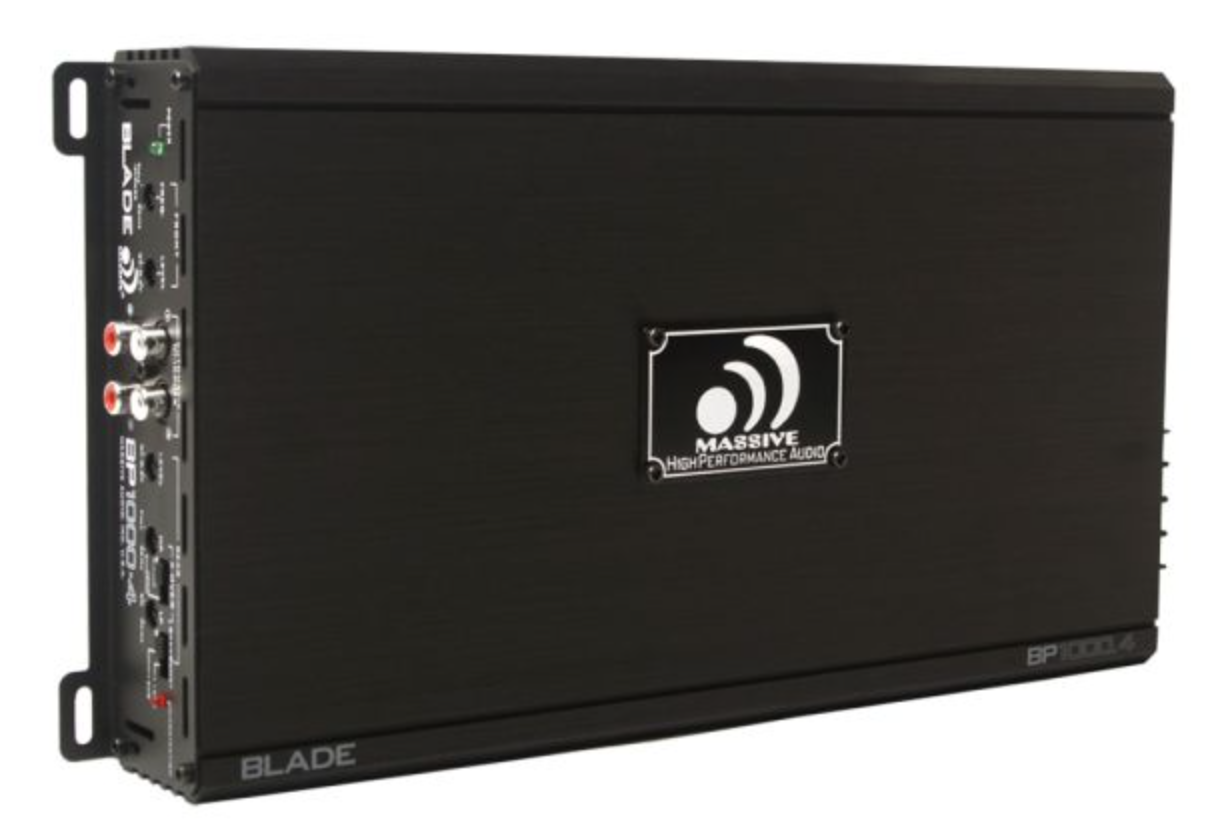

Massive Audio BP1000.4V2 amplifier 4 channel type a/b amplifier
£125.00
Massive Audio BP1000.4V2 amplifier
This is a type A/B amplifier, providing 4 x 80w at 4 ohms and 4 x 160w at 2 ohms. It can be bridged to provide 2 x 320w at 4ohm.
SPECIFICATIONS:
- Peak Output Power @ 14.4V: 250W x 4
- 1 Ohm RMS: N/A
- 2 Ohm RMS: 160W x 4
- 4 Ohm RMS: 80W x 4
- 4 Ohm Bridged: 320W x 2
- Input Level: 0.2~9.0v
- Freq. Response: 10Hz~35KHz
- THD at 4 Ohm Load 30% Rated Power: <0.05%
- S/N Ratio: >90dB
- BassBoost: 0~12dB (45Hz)
- Minimum Load: 2 Ohm Stereo
- Gain Remote: n/a
- Dimension: 2"H x 7.1"W x 12.6"L (5,08 x 18,03 x 32 cm?

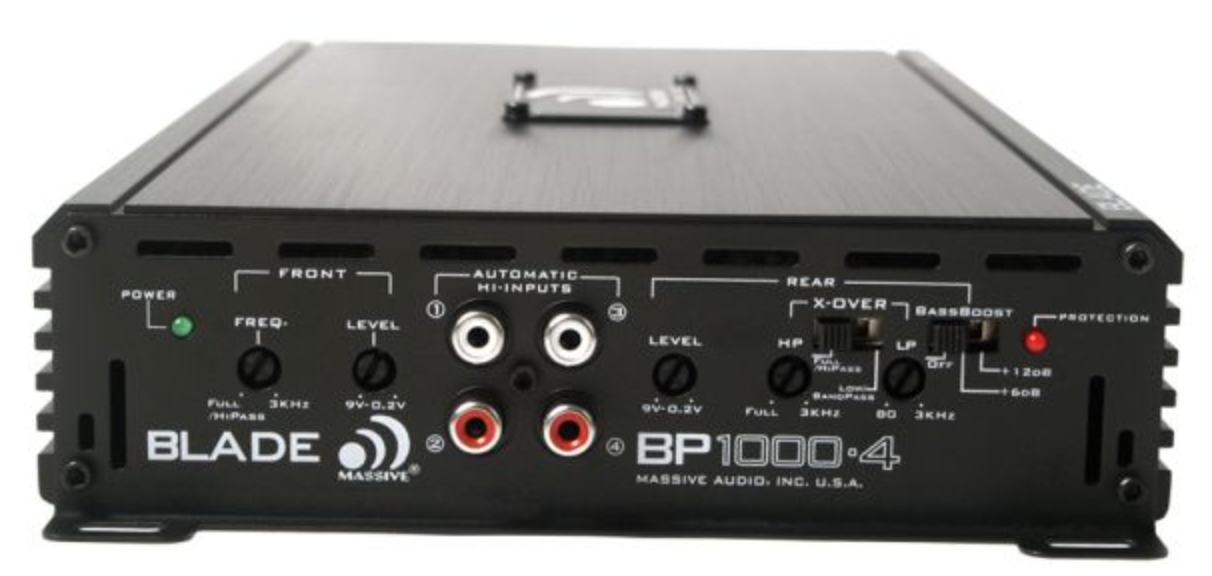

The BLADE BP Series amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in.
By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out.
Blade “BP” are Class AB designed with a minimum per channel impedance operation of 2 Ohm.
All Blade “BP” amps use Mil Spec PCBs, SMD parts, 5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standards”, “ROHS”, “E-Mark” and are CTA2006 Compliant.
